Respirometer DRI series
Waste degradation tests
DRI Respirometer measures O2 to determine the activity of microorganisms in degradable organic matter under defined continuous airflow and adiabatic conditions. Samples are measured in hermetically sealed vessels (adiabatic), which create controlled conditions defined by the EU and other norms.
Applications
- UNI 11184; Determination of biological stability by DRI;
- EN 15590; Determination of the current rate of aerobic microbial activity using DRI;
- Other applications for waste degradation.
Advantages
- Single or multi-channel system: 1 / 3 / 6 / 12;
- Plug & Play design (easy to install, use and maintain);
- Temperature sensor in each vessel;
- Automatic condensate removal system;
- Temperature, flow, pressure, humidity measurements;
- Sensor O2: Range 0–25 %, Accuracy: 2 %;

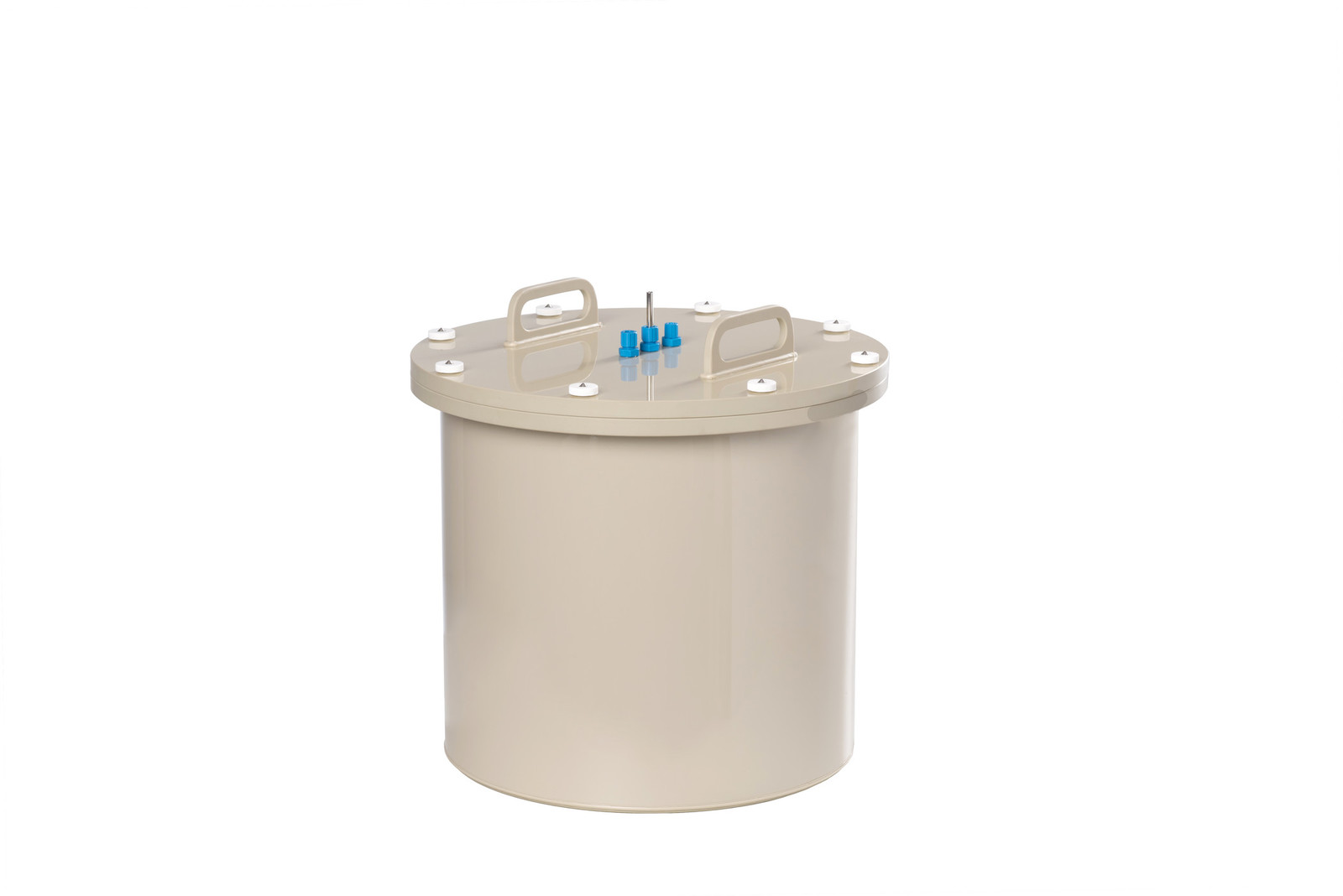

- Various sizes of vessels: 2 L, 10 L, 20 L, 30 L;
- User-friendly software with MS Excel export files;
- Remote desktop control;
- Air source (compressor) included;
- No special connections required;
- Suitable for various applications in different fields;

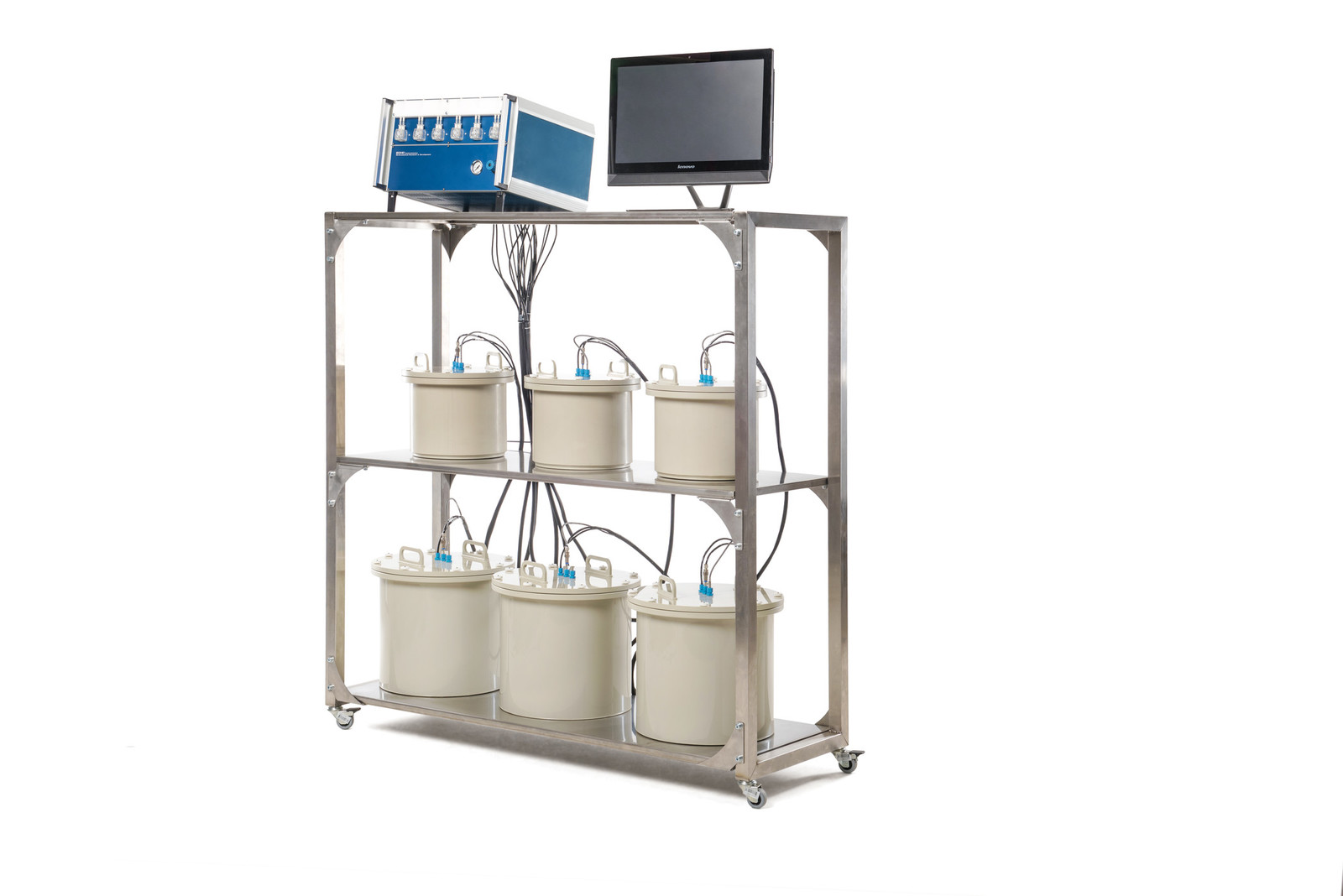

- Rack (stand) for vessels, control unit and PC.
Technical specifications
- Dimensions – Control unit for 3 & 6 channels: 48 × 40 × 28 cm; Weight: 17 kg;
- Dimensions – Rack for vessels: 140 × 60 × 150 cm; Weight: 50 kg;
- Dimensions – 10 L vessel: 42 × 42 × 45 cm; Weight: 9 kg;
- Dimensions – 2L vessel: 33 × 33 × 28 cm; Weight: 5.5 kg;
- Dimensions – 30 L vessel: 50 × 50 × 55 cm; Weight: 24 kg.
Modularity
- Technology of DRI Respirometer determines the current rate of aerobic microbial activity of solid recovered fuels using the real dynamic respiration index (DRI). The current rate of aerobic microbial activity measures the biological stability under the actual chemical and physical properties of solid recovered fuels.
