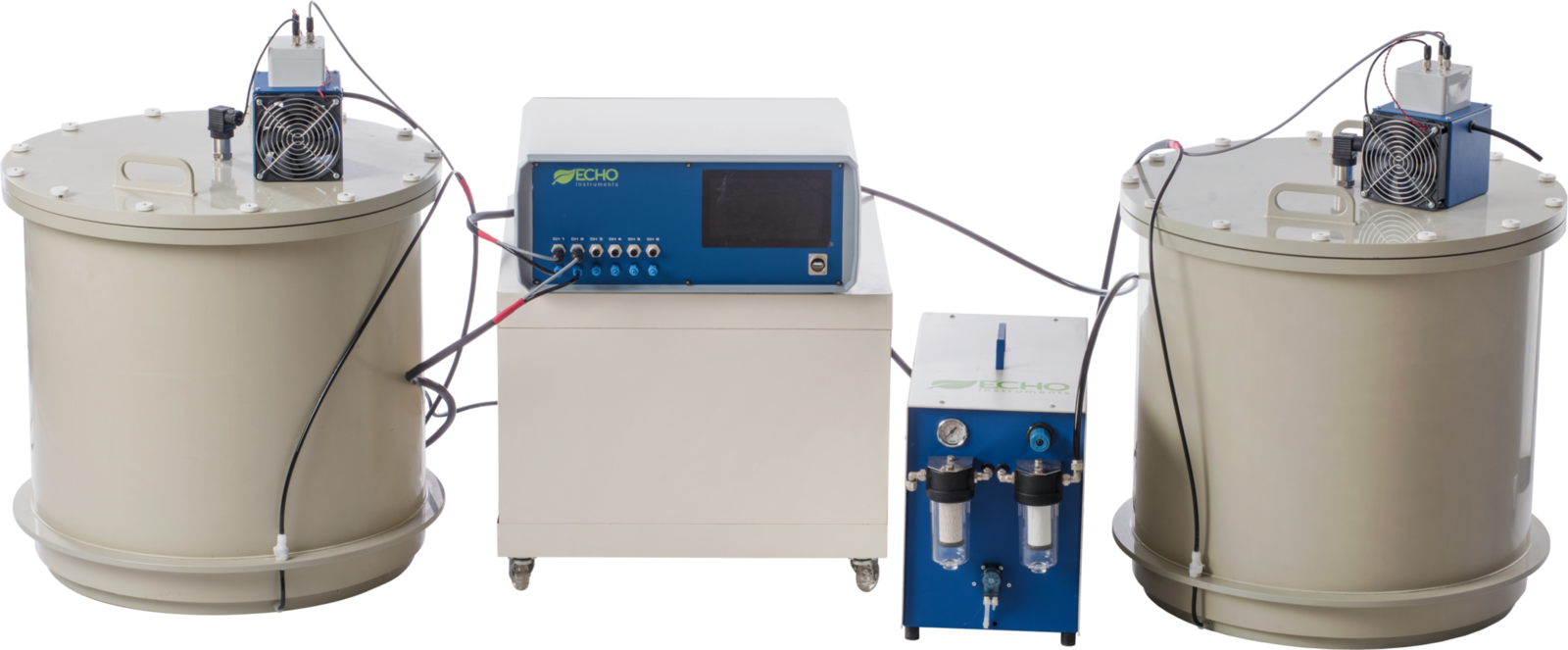

Plastic disintegration respirometer - DT
Disintegration pilot-scale tests
Determination of the degree of disintegration of plastic materials under defined composting conditions in a pilot-scale test.
Applications
- ISO 16929; Plastics – Determination of the degree of disintegration of plastic materials under defined composting conditions in a pilot-scale test.
Advantages
- Single or multi-channel system: 1/ 3/ 6/ 12;
- Plug & Play design (easy to install, use and maintain);
- Integrated PC in the control unit;

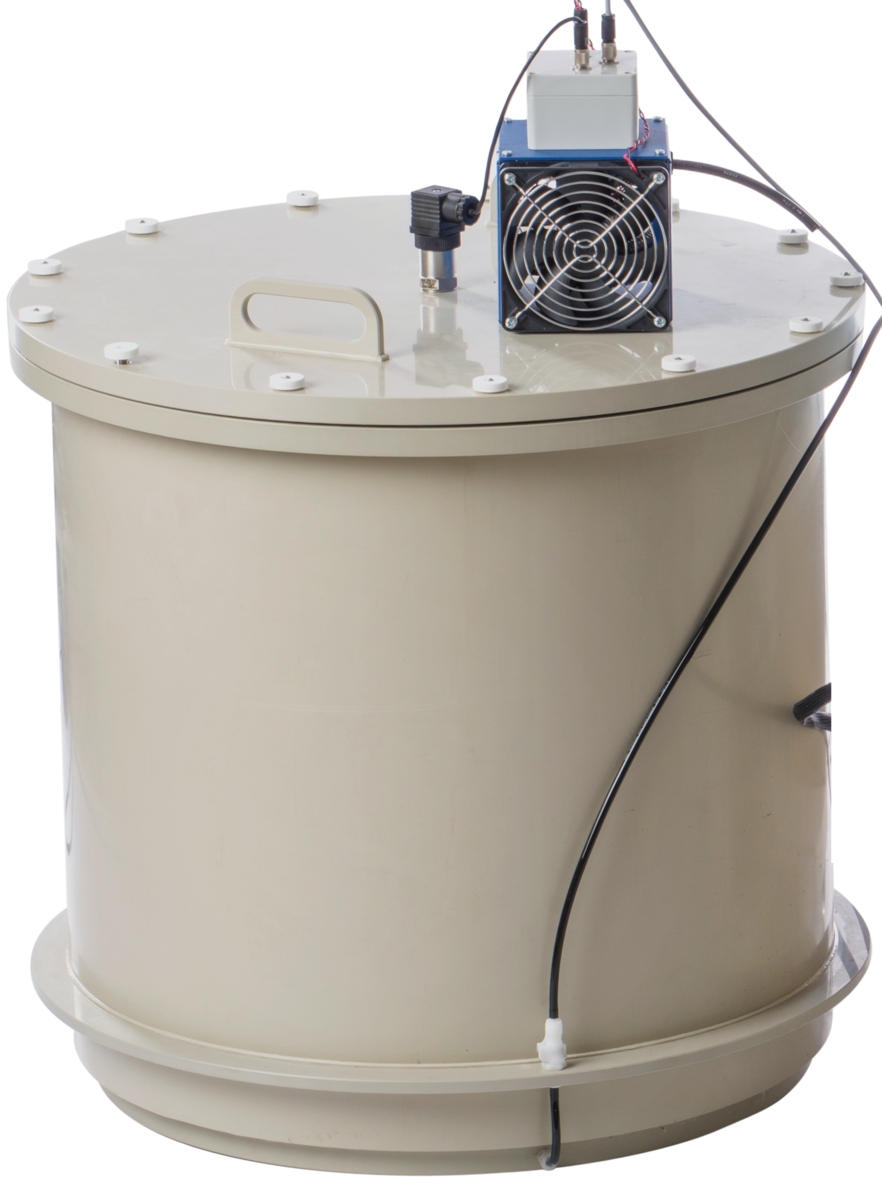

- Cooling system for each reactor;
- Temperature, flow, measurements;
- Sensor O2: Range 0–25 %, Accuracy: 2 %;
- Various sizes of vessels;
- Remote desktop control;
- Air pump – compressor;
- User-friendly software with excel export files.
Technical specifications
- Dimensions – Control unit: 39 × 49 × 20 cm;
- Volume of vessels: 35 L, 64 L, 140 L, etc..
Modularity
- The biological treatment of biodegradable plastic materials includes aerobic composting in well-operated, municipal or industrial biological waste treatment facilities. Determining the degree of disintegration of plastic materials in a pilot-scale plant is an important step within a test scheme to evaluate the industrial compostability of such materials.
- The disintegration test is performed under defined and standardized composting conditions on a pilot-scale level.
- The test material is mixed with fresh bio waste in a precise concentration and introduced into a defined composting environment. A natural ubiquitous microbial population starts the composting process spontaneously and the temperature increases. The composting mass is regularly turned over and mixed. Temperature and O2 concentration are regularly monitored.
